The main function is for cell production,cell cutting,mental material and Silicon, germanium, gallium arsenide and other semiconductor substrate scribing and cutting.
|
Component Name |
Specification |
|
Laser |
20W |
|
Screw rails/lead rail |
Taiwan |
|
Motor-Drive |
Stepper motor(Leisai),Servo motor(Delta) |
|
Computer/Fan |
Standard |
|
Software |
LAILIANLASER |

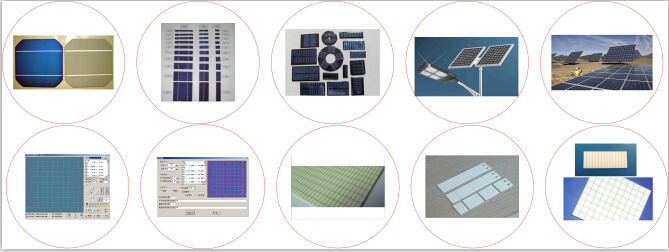

The application product of Fiber Laser Machine: solar cell sheet cutting and cutting ceramics
|
Laser wave length |
1064nm |
|
The maximum laser output power |
10/20W |
|
Laser repetition frequency |
20KHz ~ 100KHz |
|
Table running speed |
≤ 240mm |
|
Scribing width |
≤ 0.05mm |
|
Cutting thickness |
≤ 1.2mm |
|
Table travel/effective size |
320 × 320mm |
|
Table area |
350 × 350mm |
|
Power |
2φ / 220V / 50Hz / 2KW |
|
Cooling |
Air Cooling |
